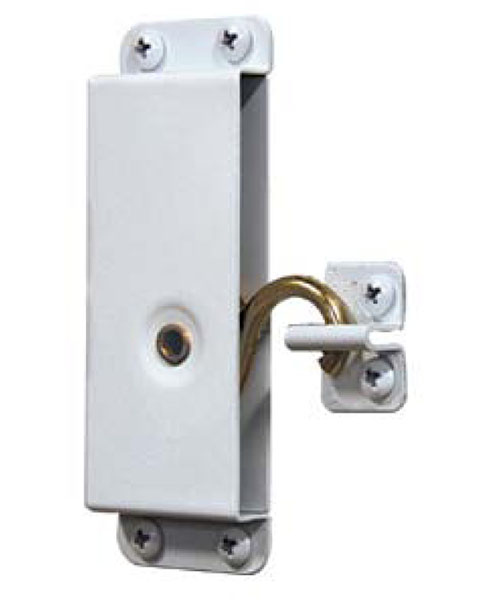

Batten Down the Hatches with ShutterUp® Latches!

All-metal, American made storm shutter fastening system covers the most applications and provides the easiest, quickest erection at storm time.
Unit of Measure

Specifications

Model

N/A TDS 206-1A1 V1-0808

Material

N/A Steel Construction, Powder Coated

Standards

N/A ASTM E330 E1886 E1996

Features

N/A

  • Meets Florida Building Code, Florida Product Approval #14171-1R
  • Texas Department of Insurance Approval pending
  • Tested to ASTM E330, E1886, E1996 standards
  • Once installed, hangs in 15 seconds at storm time
  • Super strong clamping force pulls storm shutters inward with a compressive force for proven hurricane protection
  • Do-it -yourself hurricane protection for picture windows, bay windows, large windows, large doors, sliding doors, garage doors, storefronts
  • Perfect for hurricane protection and storm protection of gazebos, camps, porches, mobile homes, vacation homes
  • Operates from inside for safe emergency egress
  • All steel construction, powder coated
  • 6 KITS available: surface mount; flush mount; wide openings; around corners; window sills; and floor attachment
  • To comply with Florida Building Code ShutterUp® Latches MUST be used with plywood shutters 5/8" OR THICKER
  • Shutters are quickly and firmly clamped against the window frame face, or down inside the frame.
  • The Shutterup® cam and wedge action imparts a powerful clamping force that presses the plywood in place against the window frame.
  • No power tools are used at when putting plywood shutters up - just a hammer.
  • No hardware is attached to the plywood shutter. Simply cut the plywood to size - that's all! No holes, no screws, nothing!
  • Permanent hardware (very low silhouette) is attached to the window frame with two screws at each fastener location, prior to a storm.
  • Large or multi-panel shutters are easily and tightly joined using Shutterup® to clamp the panels to a common batten.
  • Choose from four different Shutterup® fastener sets shown here to suit your requirements (Sets 101-1, 102-1, 103-1 and 104-1)

Need more info? Contact our Sales Engineers for information or quantity pricing.
